| 牌號(L-) | dac |
|---|---|
| 應用類型 | 合成空氣壓縮機油 |
| 傾點 | -39 |
| 閃點 | 230 |
| 粘度指數 | 46 |
| 規格 | 1630091800 |
| 品牌 | 阿特拉斯 |
| 型號 | 4506 |
[賽德維爾]阿特拉斯配件供貨范圍
成都賽德維爾空壓機有限公司推薦無錫/上海/比利時阿特拉斯科普柯/ATLAS COPCO 阿特拉斯半合成空壓機油1630091700(5L包裝) 1630091800(20L包裝) 1630091900(209L包裝)規格型號、價格、報價、零件編號、圖片、照片，1630091900阿特拉斯半合成空壓機油1630091700 1630091800原裝**、代理商、經銷商、批發商、包裝、尺寸、原產地、生產廠家、用途、使用說明。
1630091900阿特拉斯半合成空壓機油1630091700 1630091800銷售區域：
四川省成都市,重慶市,貴州省貴陽市,云南省昆明市,廣西省南寧市,湖南省長沙市,陜西省西安市,甘肅省蘭州市,
新疆自治區烏魯木齊,寧夏自治區銀川市,西藏自治區拉薩市,山西省太原市,河南省鄭州市,湖北省武漢市,
安徽省合肥市,內蒙古自治區呼和浩特市,河北省石家莊市,江蘇省南京市、蘇州市、無錫市,上海市,天津市,北京市,吉林省長春市,遼寧省沈陽市,大連市,黑龍江省哈爾濱市,山東省濟南市,廣東省廣州市、深圳市、東莞市,
福建省廈門市,海南省?？谑?/p>
[賽德維爾]配件在線訂購須知
因空壓機配件類型眾多，銷售價格會根據牌價變化適時調整，且跟購買數量、是否含稅購等因素有直接關系，決定購買時前請通過阿里旺旺，騰訊QQ或來函、來電詳詢，以銷售人員實際報價或合同為準，請勿直接下單，以免對你的購買體驗帶來不便，敬請配合！

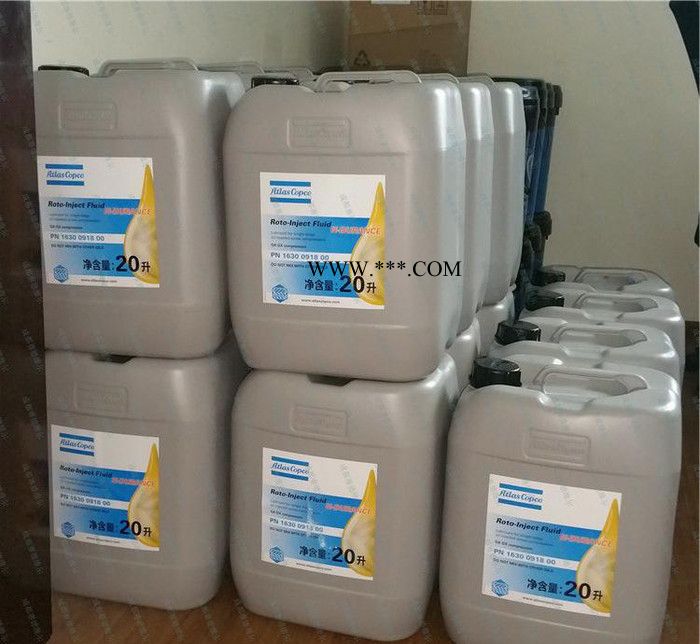

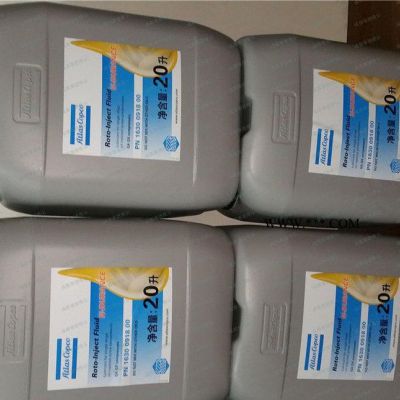

[賽德維爾]有圖有真相-阿特拉斯半合成空壓機油1630091700 1630091800 1630091900實拍
[賽德維爾]有圖有真相-曬成交案例
[賽德維爾]集團服務網點查詢
官方旗艦店網址：//www.seadweer-cd.com
全國免費服務熱線：
400-681-5868
西南公司：
四川省成都市金牛區蜀躍東路138號
下轄辦事處：四川西昌/攀枝花、重慶市、云南省昆明、貴州貴陽、西藏拉薩
西北公司：
陜西省西安市未央區北城村660號
下轄辦事處：甘肅蘭州、寧夏銀川、新疆烏魯木齊、青海西寧
東北公司：遼寧省沈陽市空沈陽市經開區7號附2
下轄辦事處：吉林長春、黑龍江哈爾濱
華北公司：內蒙古呼和浩特市新城區海拉爾街263號
下轄辦事處：山西太原、河北保定、天津市、北京市
華南公司：廣東省東莞市虎門鎮龍眼大道600號
下轄辦事處：廣西南寧、海南?？?、福建廈門
華中公司：河南省鄭州市管城區東大街24號
下轄辦事處：湖北武漢、江西南昌、湖南長沙
華東公司：浙江省寧波市沿山河南路209號
下轄辦事處：山東濟南、安徽合肥、上海、江蘇蘇州
銷售支持
:1838300381 投訴建議 :121415447 旺旺直接點擊：
[賽德維爾]阿特拉斯空壓機配件&阿特拉斯空壓機油更多查詢
MAINTENANCE KIT - I LEVEL
Description Order Nr Comment Qty
Grease pump 2908851300 1
Rotoglide blue motor grease 2908852100 1
MAINTENANCE KIT - A VISIT (4000 hrs)
NONE
MAINTENANCE KIT - B VISIT (8000 hrs)
Description Order Nr Comment Interval
B visit kit - common 2230014200 Includes: 8000 hrs
Oil filter
Air filters
Breather filters
B visit kit - float valves option 2230014201 Includes: 8000 hrs
(not included in B kit) Float valve kit intercooler 1
Float valve kits intercooler 2 and aftercooler
B visit kit - ERD option 2230014202 Includes: 8000 hrs
(not included in B kit) Filter ERD
Solenoid ERD
MAINTENANCE KIT - C VISIT (24 000hrs)
Description Order Nr Comment Interval
C visit kit - without drains 2230014203 Includes: 24 000hrs
B visit kit (common)
Volute O-rings
Oil demister service kit
Bellow water
Bellow air
Check valve oil system
Flat gasket
Oil cooler gaskets
Service kit for check valve
Cooler seal kit (when approach is high) 2230014204 Includes: 24 000hrs
(not included in C kit) O-rings coolers
Seals coolers
Seal washer coolers
Victaulic gasket set - 3 stage with AC 2230014210 Includes: 24 000hrs
(not included in C kit) Couplings
Victaulic gasket set - 2 stage all variant 2230014211 Includes: 24 000hrs
(not included in C kit) Couplings
Victaulic gasket set - 3 stage no AC (Hot air) 2230014212 Includes: 24 000hrs
(not included in C kit) Couplings
MAINTENANCE KIT - D VISIT (48 000hrs)
Description Order Nr Comment Interval
D visit kit - common parts 2230014205 Includes: 48 000hrs
C visit kit (without drains)
Thermostatic valve kit
O-ring cover strainer
O-ring chord between box & cap d3.53 FPM70
STD 3 stage kit (depending on core type) 2230014206 Includes: 48 000hrs
(not included in D kit) O-rings
Shim screw
Silencer/vent
Air seal assy's
Pinions
Bearing shim set
STD 2 stage kit (depending on core type) 2230014207 Includes: 48 000hrs
(not included in D kit) O-rings
Shim screw
Silencer/vent
Air seal assy's
Pinions
Bearing shim set
XS 3 stage kit (depending on core type) 2230014208 Includes: 48 000hrs
(not included in D kit) O-rings
Shim screw
Silencer/vent
Air seal assy's
Pinions
Bearing shim set
XS 2 stage kit (depending on core type) 2230014209 Includes: 48 000hrs
(not included in D kit) O-rings
Shim screw
Silencer/vent
Air seal assy's
Pinions
Bearing shim set
B VISIT KIT (common) - 2230014200
Designation Part Number Qty
Oil filter* 1621737890 1
Air filter 1630040799 3
Breather filter 1650122800 3
NOTE*: also in case if dual oil filter only 1 is replaced
B VISIT KIT (float valves option) - 2230014201
Designation Part Number Qty
Float valve kit intercooler 1 2906031400 1
Float valve kits intercooler 2 and aftercooler 2906038000 2
NOTE: Not included in B kit
B VISIT KIT (ERD option) - 2230014202
Designation Part Number Qty
Filter ERD 1623924900 3
Solenoid ERD 1635082600 3
NOTE: Not included in B kit
C VISIT KIT (without drains) - 2230014203
Designation Part Number Qty
B visit kit (common) 2230014200 1
Stage 1 volute O-ring 512x5,7 0663210945 1
Stage 2 volute O-ring 456,06x5,33 0663211659 1
Stage 3 volute O-ring 304,17x5,33 0663211658 1
Oil demister service kit 2906904500 1
Bellow water 1623256000 2
Bellow air 1623256200 1
Check valve oil system 1622186600 1
Flat gasket 0653118900 2
Oil cooler gasket EKM-1000-O (water inlet) 2900202500 1
Oil cooler gasket EKM-1000-T (water return) 1630031600 1
Service kit for check valve (1621171204) 2906051900 1
NOTES:
? Drain kits to be ordered separately (see B visit)
? Victaulic kit to be ordered separately
COOLER SEAL KIT - 2230014204
Designation Part Number Qty
O-ring coolers 0663211634 9
O-ring coolers 0663210507 3
Seal coolers 1621853000 24 dm
Seal coolers 1621853000 12 dm
Seal washer coolers 0661100025 6
D VISIT KIT (common parts) - 2230014205
Designation Part Number Qty
C visit kit (without drains) 2230014203 1
Thermostatic valve kit 2906907700 1
O-ring cover strainer 0663211340 1
O-ring chord between box & cap d3.53 FPM70 0800001238 25 dm
STD 3 STAGE KIT - 2230014206
Designation Part Number Qty
O-ring 119,5x3 NBR Main oil pump 0663714800 1
Shim screw M3x6 0162156913 18
Silencer/Vent 1650 1227 00 3
Air seal assy stage 1 1650121180 1
Air seal assy stage 2 1650121180 1
Air seal assy stage 3 1650121181 1
Drive shaft O-ring 149.3x3 NBR 0663929600 1
ST1 oil seal O-ring 129.5x3 FPM 0663715000 1
ST2 oil seal O-ring 129.5x3 FPM 0663715000 1
ST3 oil seal O-ring 119.5x3 FPM 0663714800 1
PE (ST1) pinion 1 bearing 1650120400 1
DE (ST2) pinion 1 bearing 1650120300 1
PE (ST3) pinion 2 bearing 1650120600 1
DE (ST4) pinion 2 bearing 1650120500 1
